DOUBLE SIDED PROJECTION SCREEN FILM

( 2 Sided Projection Screen / Dual sided projection screen)

DUPIC

A new projection screen film technology that has been optimized to transmit 50% of the received light while reflecting the other 50%.

How DUPIC works?

Double sided projection screen, dual sides projection screen, film screen, dupic screen

  • A film with two times improved refractive index
  • Fiber optics powdered surface at the molecular level

  • This double sided projection screen film has a two-times improved refractive index which makes the image refracted equally (1:1) from a projector on both directions. Fifty of the projection light (G) goes through the film (D) to the other side (G -> G”); the rest of the light (B) is refracted inside of the film and bounces back toward the projector. (B -> B”)

  • Same high resolution, wide viewing angle (180°), and no hot spot on both refracted and transmitted image.



Patents registered : USA, UK, China, Korea, Japan

CES Innovation Award-Winning Technology

double sided projection screen film dupic
double sided projection screen film dupic

DOUBLE SIDED PROJECTION SCREEN

Dupic Material

  • Color : Milky white
  • Thickness : 75micron, 125micron
  • Type: Adhesive, Non-adhesive
DUPIC : DOUBLE SIDED PROJECTION SCREEN


DOUBLE SIDED PROJECTOR SCREEN

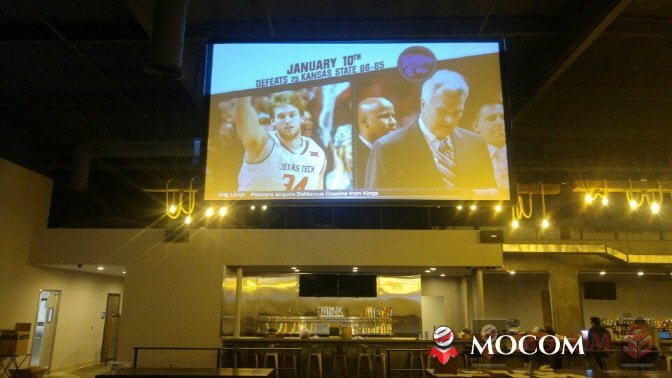

Fixed Screen with frame

When applied to window or an acrylic panel and suspended in the middle of an open space, video of equal brightness and quality can be seen from both sides of the hanging panel for a 360° viewing experience.

  • Model: DP, DPW
  • Size :30”- 153” (please check with us for availability)

**Note that the image will be flipped on the other side.


DOUBLE-SIDED PROJECTION SCREEN

Manual Pull down Screen

This product is a pull down two-sided screen that is normally used by mounting it above to allow viewing from both sides, thus doubling the effect.

  • Model: DPR
  • Size: 60, 80, 100″
DUPIC : DOUBLE-SIDED PROJECTION SCREEN
DUPIC : DOUBLE-SIDED PROJECTION SCREEN


DOUBLE SIDED PROJECTION FILM

Adhesive film screen

This adhesive film is the perfect material for window displays.

There are two thicknesses with different brightness levels.

It's easy to cut and you can customize the size, shape to match your needs.

75micron : 2.5Gain

Height 1,250mm – roll

125micron : 1.5Gain

Height 1,650mm – roll

DOUBLE SIDED PROJECTION FILM DUPIC

APPLICATIONS

Café’s, Bars, Restaurants, Window display, Digital signage, Events, entertainment, Gallary, Shops,

shopping malls, Museums, amusement park, Fairs, trade show and demonstrations

FAQ

Q1. How to clean the Dupic?

Mocom's Dupic can be easily cleaned with mild detergent and water, using a lint-free cloth.

Q2. How does Dupic (double sided) differ from other rear projection screens?

The Dupic has been specially formulated to provide exactly the same amount of reflection as transmission (50:50) while conventional rear screens have different brightness and clarity on each side.
