The Best 3D Projection Screen

(Passive & Active 3D)

Solstice™

Challenges with current 3D projection screen / displays

Low Brightness (for both active and passive 3D)

Low-Gain projection screens are not suitable for 3D projection due to the lack of reflectivity. Generally. the polarization filter and polarized 3D glasses reduce over 70% of the image brightness between the light source and the viewer’s eyes. The viewers can suffer with the eye strain due to the low brightness of images even for low ambient light.

Low Polarization retention causing cross-talk (for passive 3D)

To enable stereoscopic vision, a special projection screen that preserves polarization is required. Standard screens diffuse light and therefore are incapable of retaining polarization.

“No polarization preservation = No 3D Capability”

Poor polarization preservation adds “cross-talk”

“Why Should I Choose Mocom Solstice™ for My 3D?”

New generation of 3D projection screen

The Solstice™ series is engineered to overcome the challenges that current 3D projection system encounter.

It provides an amplified 3D presence effect by adopting simulator screen technology.

3d projection screen Solstice

High brightness for both passive and active 3D

The Screen Material

This screen surface material is designed to work well in both environments with ambient light and controlled light condition in order to compensate for the loss of light-output that occurs during the 3D process while silver color enhancing image brightness and contrast level. Optimized for any 3D format (active, passive linear and circular)18x brightness when compared to a 1-gain matte white screen, and 7x brighter than a 2.5-Gain silver projection screen.

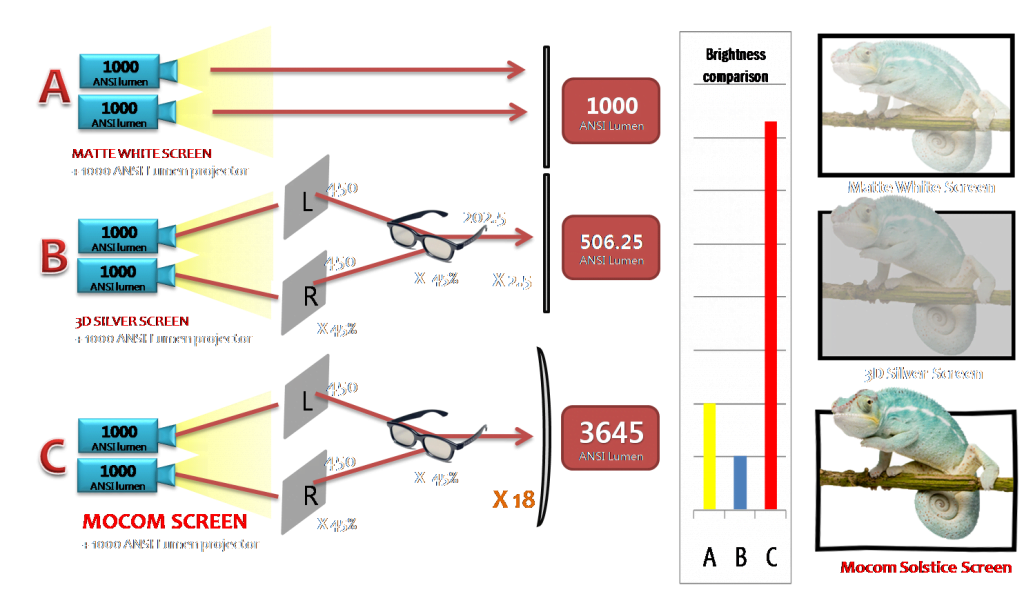

With Passive 3D System

3d projection screen comparison
  • The passive 3D system requires two projectors, polarized filters, polarized 3D glasses & polarized screen. This method is more common for 3D movie theaters.
  • Conventional matte white materials cannot realize 3D in passive 3D system since they do not preserve (or reflect) the polarization. However, it can be used with active 3D projection system which requires 3D ready projectors and active glasses.

Reduces the headaches

“Solstice™” reduces the headaches, dizziness and eye strain caused when viewing dim images – ambient lighting conditions are no longer critical issues.

It enables 3D images to be viewed on a large screen under unfavorable/bright ambient lighting.

Accepts input from the highest resolution source

The micro-fine diffusion lines along the scanning axis along with a micron-sized particle surface, achieves the highest possible resolution and displays images as they are truly meant to be seen.

High polarization reflection for passive 3D

Cross-talk (commonly known as ghosting) is inevitable on most 3D silver screens due to poor polarization preservation. However, the Solstice™ HD/3D projection screen is designed using a material that reflects more than 99% of polarization and high extinction rate. It virtually eliminates cross-talk/ghosting and allows for the best 3D images.

Benefit of the curve

A precise lens-like curvature prevents hot-spotting and rejects ambient light sources.In addition, the curvature enhances the  3D effect by increasing the perceived depth.

Optimum 3D Seats

Flat Silver Screens

  • Only 1-2 seats have true a 3D viewing experience (The angle of the incidence and reflectance)
  • Certain spots in front of the screen provide a better 3D experience than the others

Vs.

Solstice™

•Extends  the effective a 3D viewing area

•Uniformly within the screen width

•Reflection of the light straight to the viewers

Mocom Solstice™ has a wider 3D image viewing range in comparison to only some seats with silver screens

 Learn more about SOLSTICE™
